Barrel wells are used in washrooms, in the food industry and in preparation kitchens in front of pots.

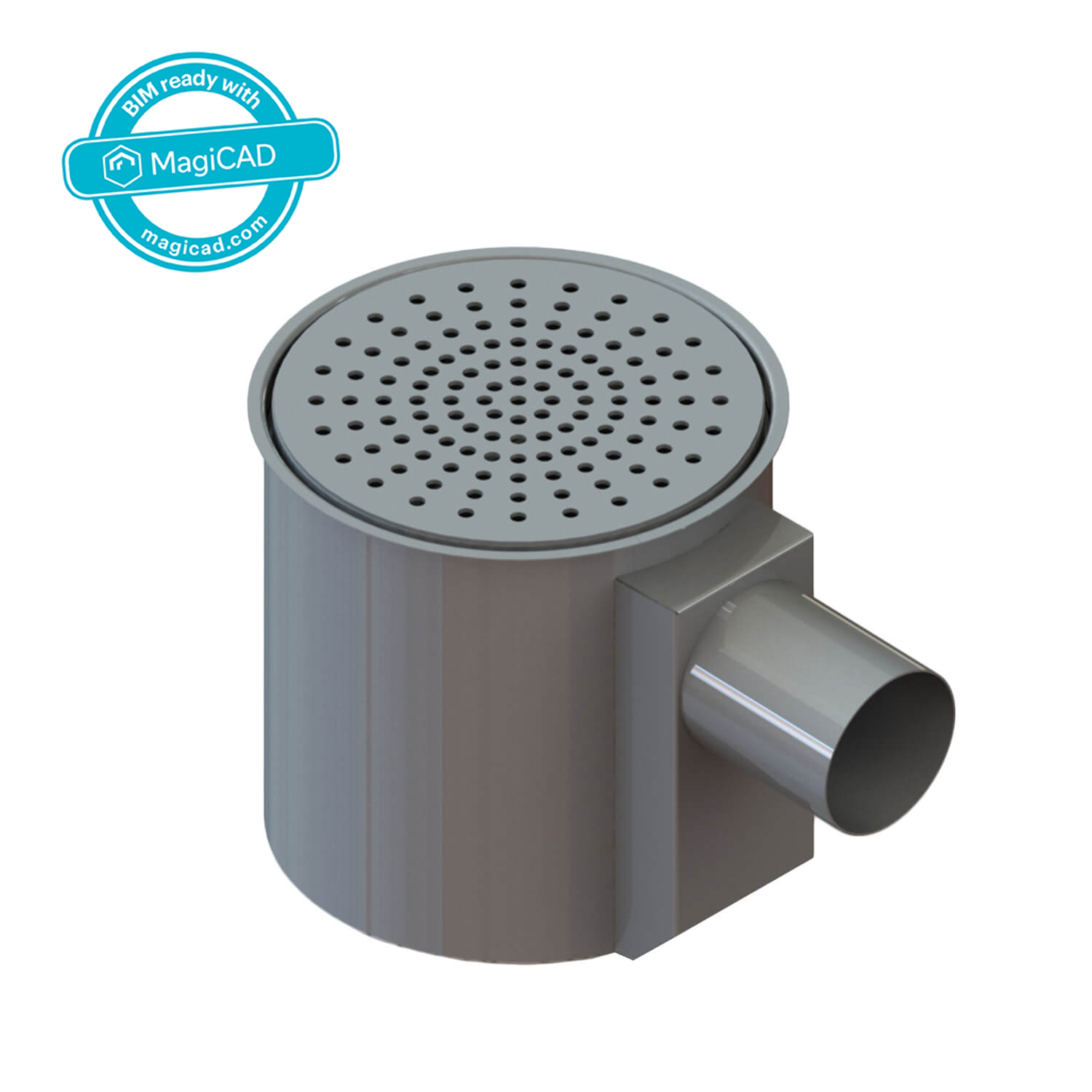

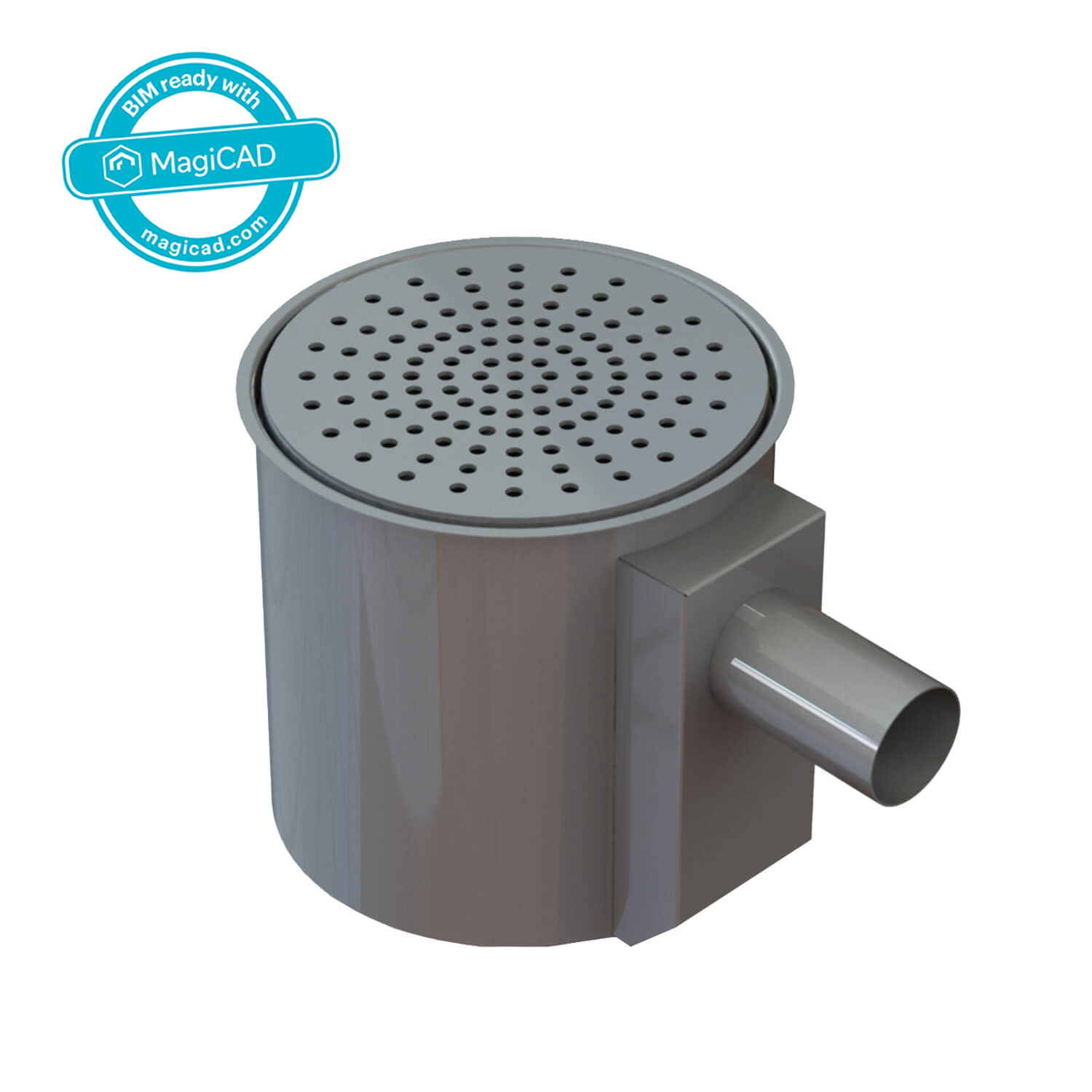

Domestic stainless steel side discharge barrel well, equipped with a perforated SS strainer cover and a removable SS straine basket with a capacity of approx. 9 litres. The water trap is fitted with a rubber stopper to facilitate cleaning
Depending on the flooring material, the wells are fitted with fittings suitable for plastic mats, ceramic tiles or solid floors.
When planning the installation of a barrel well, it must be taken to ensure that there are no furniture structures above the well, e.g. to prevent emptying the large strainer baskets from inside the barrel well.
A lateral connection can be welded to the well, either on the side of the well or through the sediment bucket. The sediment bucket can be connected to the Kavika floor basin at the factory.
On request, the well is also available in acid-resistant steel. (HST)
Templates | Departure from | Flooring material | Plumbing number | Flow rate |
---|---|---|---|---|
9080/1 | DN75 | Carpet | 3305150 | 2,85 l/s |
9080/3X | DN75 | Tile | 3305151 | 2,85 l/s |
9080/4 | DN75 | Mass | 3305152 | 2,85 l/s |
Templates | Departure from | Flooring material | Plumbing number | Flow rate |
---|---|---|---|---|
9081/1 | DN110 | Carpet | 3305154 | 3,2 l/s |
9081/3X | DN110 | Tile | 3305155 | 3,2 l/s |
9081/4 | DN110 | Mass | 3305156 | 3,2 l/s |
