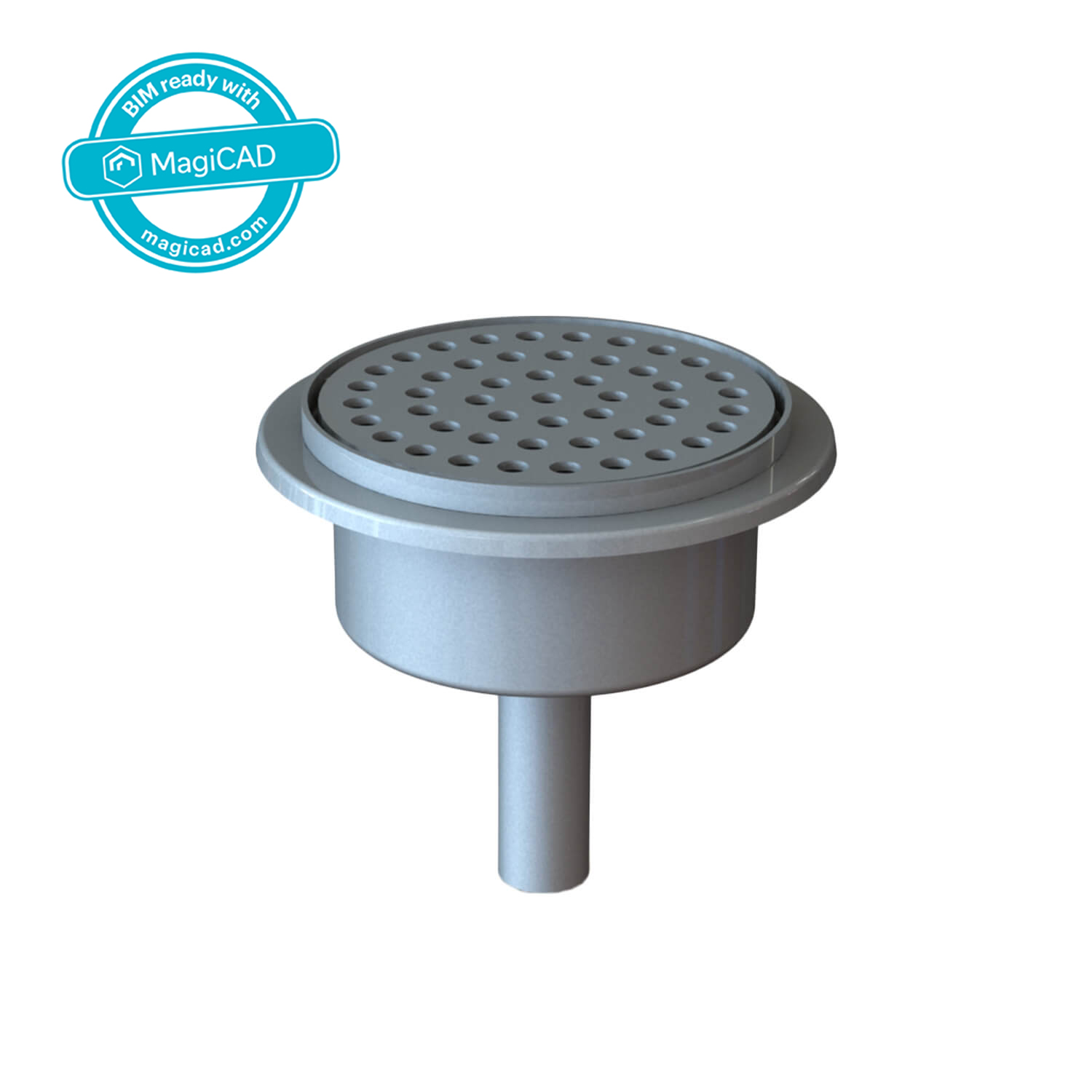

Vertical dry well 9053

The dry well is made of stainless steel and factory welded to match the floor surface material.
The standard material thickness of the sump cover is 3.0 mm. The sump cover is also available in a 5.0 mm pump truck resistant version and a 8.0 mm forklift resistant version. If required, the cover can also be manufactured with screw fixing.

Dry wells are used in conjunction with a water-locked well, to which they are connected via an additional connection. The wells can be connected directly to the floor basin, offering flexibility for different installation options.

The well is manufactured with DN32 mm and DN50 mm drainage pipes.
