Sand separator wells are used in areas where sand or other solid waste can enter the sewer, such as production plants, industrial kitchens and wet rooms. Stainless steel manholes ensure long life and reliable operation.
Domestic stainless steel side discharge gully, equipped with RST screen 9054 and a removable RST sediment container with a capacity of approx. 9 litres. It is equipped with a DN75 outlet. The grating is supplied with a material thickness of 2 mm. The grating is also available in a stronger forklift resistant version.
Depending on the flooring materials, the manholes are fitted with fittings suitable for plastic mats, ceramic tiles or solid flooring. We also produce wells for thicker tiles for outdoor use, such as marble, mosaic concrete, dry pressed concrete.
A lateral connection can be welded to the well, either in the well body or through the septic tank. It is possible to connect the grit separation well to the Kavika floor tank at the factory.
On request, the well is also available in acid-resistant steel. (HST)

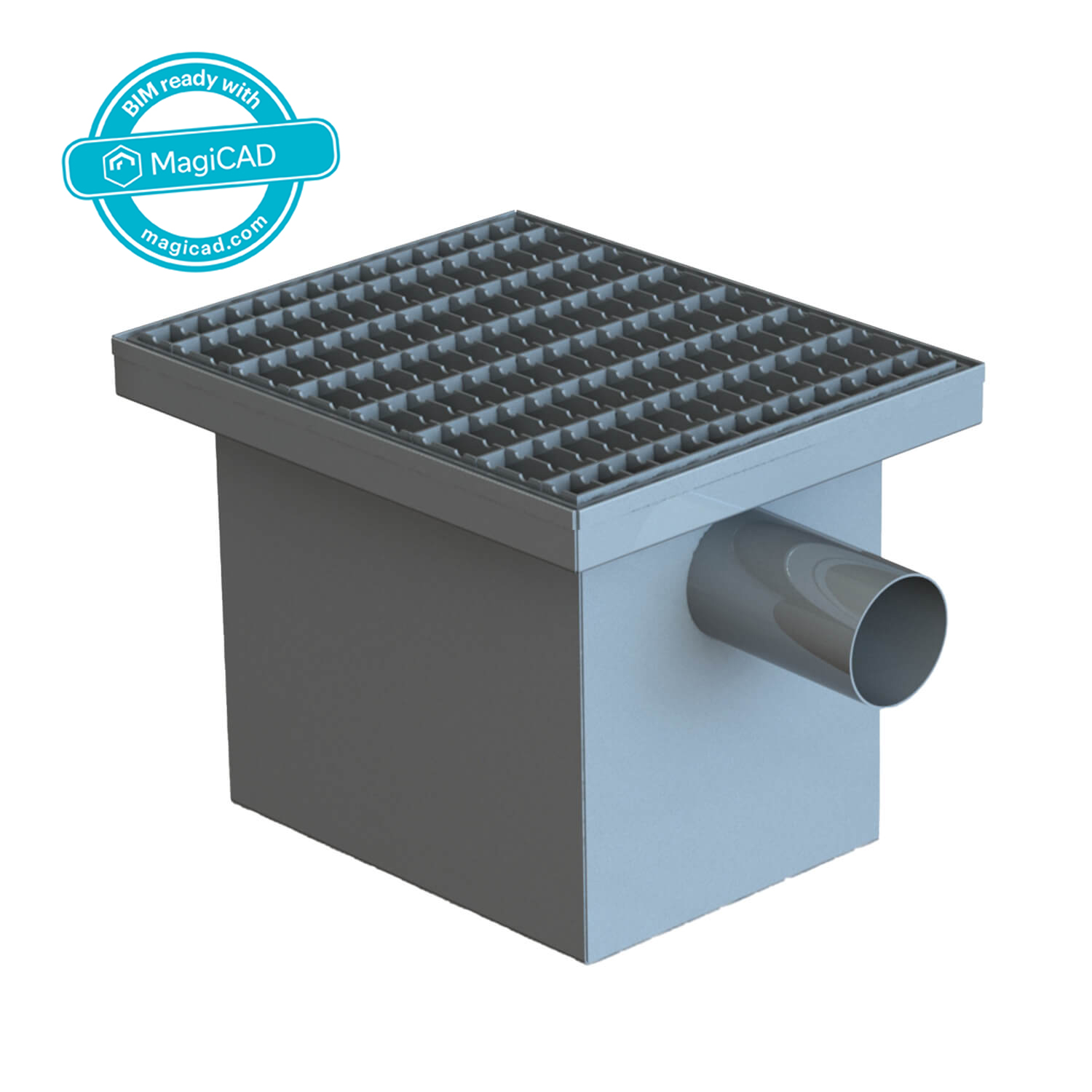

| Templates | Departure from | Flooring material | Plumbing number | Flow rate |
|---|---|---|---|---|
| 9070/1 | DN75 | Carpet | 3305125 | 3,2 l/s |
| 9070/3X | DN75 | Tile | 3305126 | 3,2 l/s |
| 9070/4 | DN75 | Mass | 3305127 | 3,2 l/s |

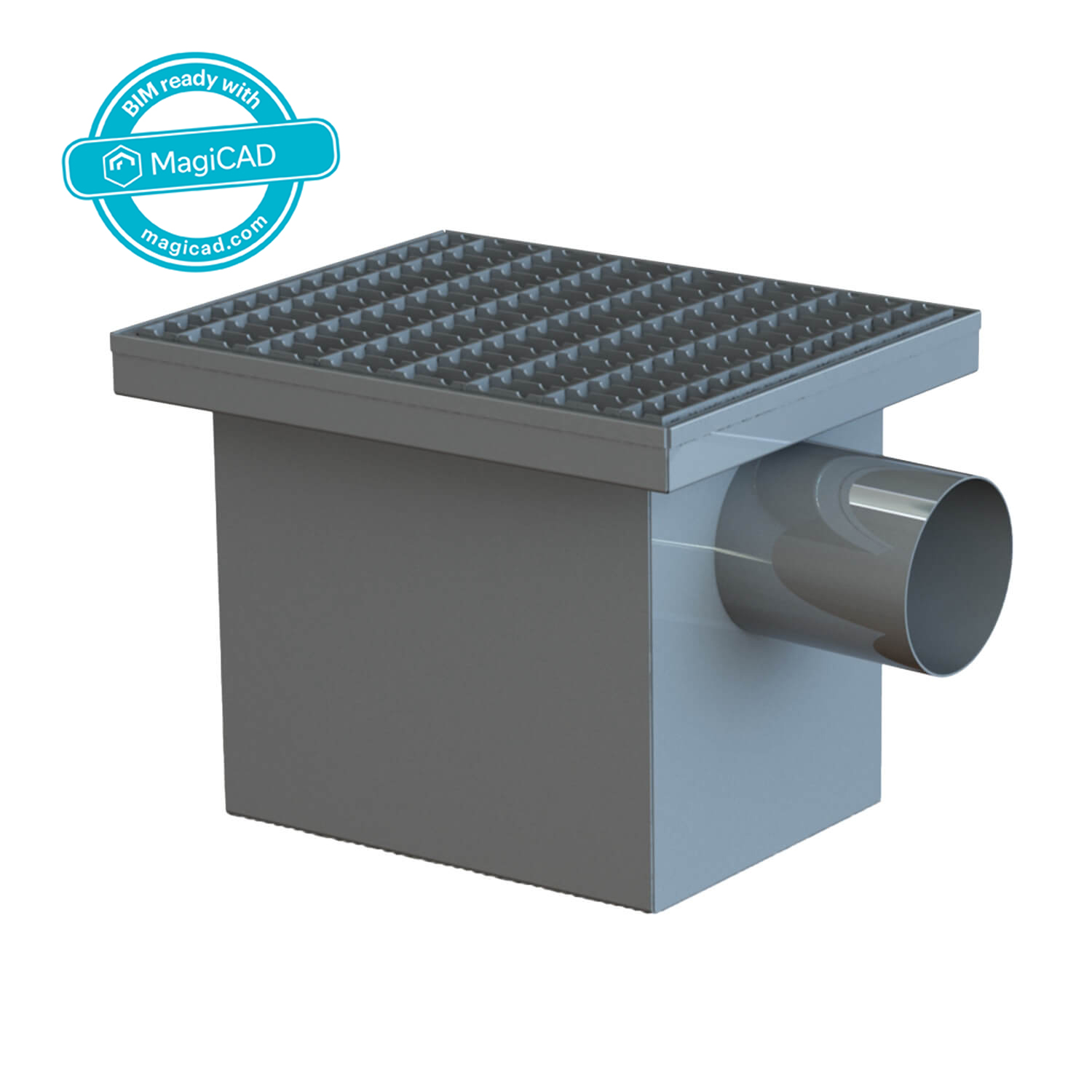

| Templates | Departure from | Flooring material | Plumbing number | Flow rate |
|---|---|---|---|---|
| 9071/1 | DN110 | Matto | 3305129 | > 4.0 l/s |
| 9071/3X | DN110 | Plaque | 3305130 | > 4.0 l/s |
| 9071/4 | DN110 | Massa | 3305131 | > 4.0 l/s |
